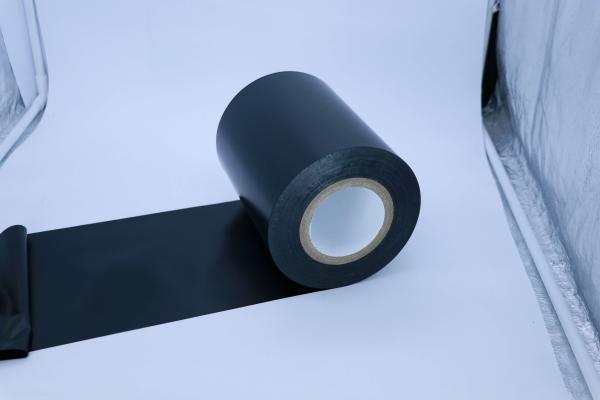

0.1mm Thickness HDPE Cross Laminated Film
Description:
It is a high-strength multi-layer composite film,made of HDPE as
the base material,
Through multi-layer co-extrusion blow molding into embryos, and
then by multiple pull
Stretching, then rotary cutting into a film substrate with a
horizontal and vertical
distribution of 45 °, and finally through cross-laminated with an extruder with their
orientation directions crossed at 90 degrees.
The films are laminated together with a layer of polyethylene.
OUR THREE STEP PROCESS FOR MANUFACTURING HIGH STRENGTH,
DURABILITY, AND QUALITY PLASTIC FILMS IS THE KEY TO SUCCESS.
Step 1: Extrusion
► High density polyethylene resin (HDPE) is extruded via the blown
film process to form a tube. The tube is cooled and collapsed into
a flat tube.
► After the tube is flattened, it is fed into a multi stage
orienter. During orientation, the film is stretched in the machine
direction aligning the polyethylene molecules. The resulting film
is very strong in the machine direction.
► The oriented tube is then annealed and wound up. The annealing
step removes stress in the film and controls shrinkage. The
annealed film retains its high MD strength.
Step 2: Spiral Cutting
► The next step of the process is spiral cutting. In this step, the
flattened, oriented tube in unrolled, rotated and re-inflated to
form a round tube.
► As the film is fed forward and rotated, it is cut on a bias
(around 45 degrees) and wound up. The spiral cut film’s orientation
is at 45 degrees to the machine direction.
Step 3: Cross Lamination
► Finished spiral cut rolls are mounted on corresponding spindles.
► Films are fed through and laminated with an extruder with their
orientation directions crossed at 90 degrees. The films are
laminated together with a layer of polyethylene.
► After lamination, film is surface treated for ink adhesion and
graphic purposes. Finally, the film is wound on a core to estimated
yardage.
| Why Cross Laminated? |
| 1. Puncture Resistance: less accidental damage |
| 2. Thermal Dimensional Stability: No fish-mouthing or controlled
shrinkage |
| 3. Cold temperature resistant down to -30°C/-20°C |
| 4. Cross laminated film allows waterproofing membranes to bridge gaps
in sheathing and is resistant to damage from incidental movement
and settling of the roof |
| 5. UV Stability for typical job site exposure |
Parameter:
| NO. | Item | Performance |
| | SDM-30 | SDM-60 |
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| | MaxF/(N/50mm) ≥ | 200 | 300 |
| | Elongation as MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 250 |
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 |
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 |
| 4 | Angle Tear Strength/N ≥ | 25 |
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation |
| 6 | Cryogenic Flexibility ℃ | -35℃, No fissure, No delamination |
| 7 | Thermal Ageing | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 80 |
| | Elongation at MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 200 |
| 8 | Artificial Weathering | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 70 |
| | Elongation at MaxF/% ≥ | 180 |
| | Elongation at break/% ≥ | 180 |
