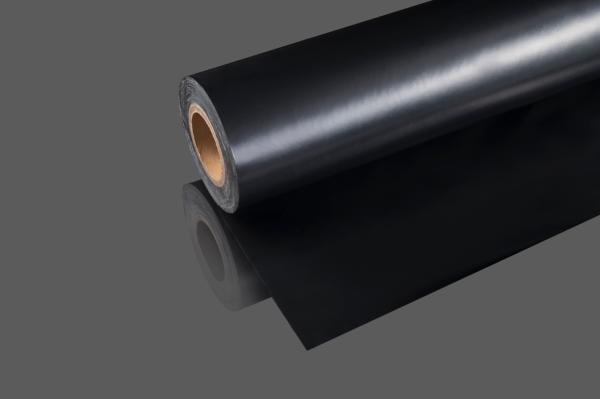

    90 Micron Black Stability 0.09mm HDPE Film Roll

    Ask Lasest Price
    Brand Name : Upass
    Model Number : Cross Laminated Film
    Certification : CE, ROHS
    Price : Negotiable
    Payment Terms : T/T,L/C
    Supply Ability : 200,000㎡~300,000㎡
    Delivery Time : 15days
    • Product Details
    • Company Profile

    90 Micron Black Stability 0.09mm HDPE Film Roll

    90 Micron Thermal Dimensional Stability Cross Laminated Film

    Description:

    It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
    Our proprietary manufacturing process is composed of 3 steps: HDPE Film Extrusion, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.



    Parameter:

    NO.ItemPerformance
    SDM-30SDM-60
    1Tensile PropertyTensile Strength/Mpa ≥3050
    MaxF/(N/50mm) ≥200300
    Elongation as MaxF/% ≥200
    Elongation at break/% ≥250
    2Sample number of no broken tested by free-falling dart method ≥8
    3Tear Strength(Nail Shank)/N ≥60
    4Angle Tear Strength/N ≥25
    5Thermal Stability120 ℃,10min, No bulb, No deformation
    6Cryogenic Flexibility ℃

    -35℃,

    No fissure, No delamination

    7Thermal AgeingAppearanceNo bulb, No deformation
    Subsequent MaxF/% ≥80
    Elongation at MaxF/% ≥200
    Elongation at break/% ≥200
    8Artificial WeatheringAppearanceNo bulb, No deformation
    Subsequent MaxF/% ≥70
    Elongation at MaxF/% ≥180
    Elongation at break/% ≥180



    Advantages:



    Application:

    ► Surface/base material for CONSTRUCTION WATERPROOFING
    ► Material film for PERFORMANCE PACKAGING
    ► Carrier Material for PRINT MEDIA
    ► Custom Lamination



    Structure of bitumen membranes:
