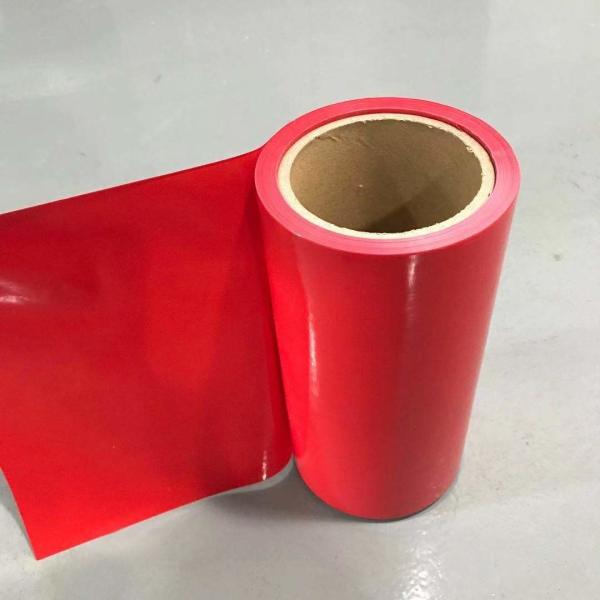

Name: 70 Micron DS Red 007mm High Density Polyethylene Film
Brand: UPASS
Price: 1 USD

Add to Cart

A release liner is a plastic release film which made of PE/PP/PET film as carrier, silicon

coated on either one or two-sided releases options.

The film is uniform coated and very smooth and clean without wrinkles/tears/granules/

bubbles/pinholes or other defects. This highly conformable product bonds well to most

surfaces over a wide range of temperatures and release film is heavily used in

consumer products worldwide.

Name		Release Film double side silicone – Red		Specification	0.07mm*1050mm
Testing Method		Q/TPXP 1-2013		Date	2020.8.5
NO.	Testing Item	Factory Requirement		Testing Result	Conclusion
1	Appearance	No bubble , no broken		Qualified	Qualified
2	Specification (mm)	Width	1050±5mm	1052	Qualified
		Thickness	0.07±0.005mm	0.072	Qualified
3	Max.F (N/50mm)	TD	≥30	102	Qualified
		MD	≥30	114	Qualified
4	Elongation@Break (%)	TD	≥150	864	Qualified
		MD	≥200	726	Qualified
5	Tensile Strength(MPa)	TD	≥16	28	Qualified
		MD	≥18	32	Qualified
6	Release Force (N/25mm)	Outer Side: 0.142			Qualified
		Inner Side: 0.062
7	Subsequent Adhesion (%)	≥75		79	Qualified

Why use a release liner?

When you production self-adhesive products, such as tapes, bitumen waterproofing

membranes,tutyl rubber, etc. It used as a carrier which made the rolled products not

stick together, it's like a protective film, when you use the self-adhesive products,

it will be peeled off.

Applications:

♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes

♦ Used for cables production, packaging materials

♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

For kinds of DS self-adhesive tapes:

Why UPASS:

We have a Innovation Team to R&D new products, we have a QC team to control the quality,

make sure they are the best products when send out.
