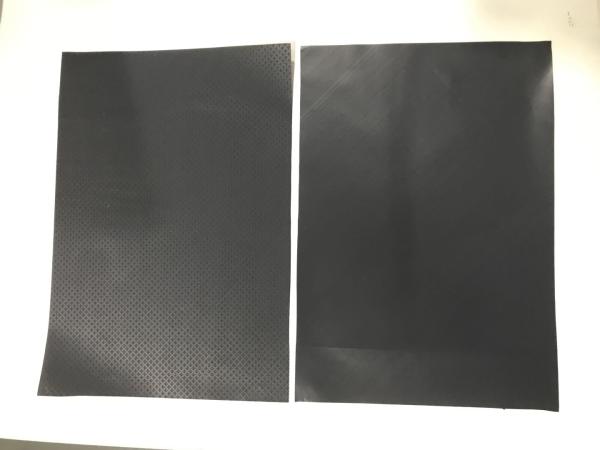

Slope Roofing Application Anti-Slip Cross Laminated Film
Description:
It is a high-strength multi-layer composite film,It is made of HDPE
as the base material,
adding plasticizer, plasticizer, stabilizer, antioxidant, UV
absorber, toughener and other
additives through multi-layer co-extrusion blow molding into
embryos, and then by multiple
pull Stretching, then rotary cutting into a film substrate with a
horizontal and vertical
distribution of 45 °, and finally through cross-compositing. Due to
its cross-stacking
structure is different from ordinary single-layer or multi-layer
film, it has the thermal
stability, dimensional stability, two-way tear resistance, two-way
uniform tension and
high elongation which are not available in traditional films.
Parameter:
| NO. | Item | Performance |
| | SDM-30 | SDM-60 |
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| | MaxF/(N/50mm) ≥ | 200 | 300 |
| | Elongation as MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 250 |
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 |
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 |
| 4 | Angle Tear Strength/N ≥ | 25 |
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation |
| 6 | Cryogenic Flexibility ℃ | -35℃, No fissure, No delamination |
| 7 | Thermal Ageing | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 80 |
| | Elongation at MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 200 |
| 8 | Artificial Weathering | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 70 |
| | Elongation at MaxF/% ≥ | 180 |
| | Elongation at break/% ≥ | 180 |
Advantages:
► Excellent dimensional stability. It can fix its own size without
deformation
► Two-way tear resistance. The vertical and horizontal mesh
structure effectively solves
the phenomenon of easy wrinkling and drumming after construction
► Performance against UV radiation. The use of outdoor high
temperature conditions is
guaranteed
► High strength and high elongation performance. Excellent
resistance to high and
low temperature
► Unique puncture resistance, self-healing and continuous tear
resistance and excellent
nail water tightness.
,
Application:
A cross-laminated polyolefin that is taken to new levels of
performance.
After countless iterations in our lab, we created a film that
features outstanding strength,
a heightened spectrum of resistances in many categories, and much
more. In fact,
you have probably already used a tag, label, or package made with
award winning
Cross Laminated Film, as it can be found in electrical cord labels,
pilfer-resistant flexible packaging, pool chemical packaging,
and construction waterproofing membranes.
| 1. CONSTRUCTION WATERPROOFING |
| 2. PERFORMANCE PACKAGING |
| 3. PRINT MEDIA |
| 4. CUSTOM LAMINATIONS |
