5mm Economical Laminated 5000 Micron Adhesive Smart Film

Ask Lasest Price
Brand Name :	UPASS
Model Number :	Youguang
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	TT/LC
Supply Ability :	600 Tons/Month
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

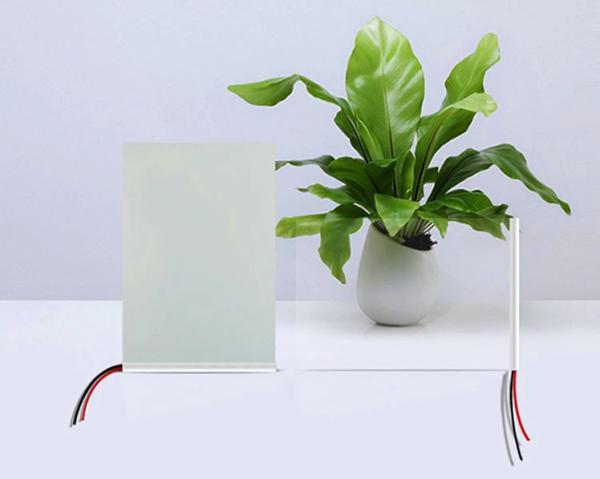

5mm Economical Laminated 5000 Micron Adhesive Smart Film

Economical Laminated Self-adhesive PDLC Smart Film

Product Description:

Economical Laminated Self-adhesive PDLC Smart Film is also known as
PDLC film (Polymer Dispersed Liquid Crystal), electrically controlled smart film,
electronic curtain, smart film, intelligent film, magic film, switchable film, etc.
It's enabling glass to be instantly transformed from a clear state to an opaque state,
by the flicking of a switch, providing immediate privacy and security, when required.

It is based on digital shading technology that allows the color of the film to go from
non-transparent to transparent when you apply a current through it. PDLC Samrt Film
will will give you the option for privacy on demand by adjusting the amount of light
traveling through your window.

Technical parameters:

Item		Performance / Unit	Testing Method and Standard
Rated Voltage	ON	36/48/60(AC50HZ)	Multimeter
Power Consumption	ON	4-6w/(SQM)	Multi-parameter Electrical Measuring Instruments
Total Light Transmittance	ON	＞83%	GB/T 2410-2008GB/Spectrophotometer
	OFF	＞67%
Directional Light Transmittance	ON	＞80%	GB5137.2-2002
	OFF	＜4%
Haze	ON	＜4%	GB/T 2410-2008GB/Spectrophotomete
	OFF	＞96%
Response Time	ON	＜40(MS)	Liquid Cystal Mutl-prareter. Measuring Instrument
	OFF	＜210(MS)
Operating Temperature	/	-30~70℃	Constant Temperature and Humidly Testing Machine
Lifetime	ON	＞100000(H)	GB18910.5- 2008

Structure:

Application:

Glass wall / partition

Bath Room / Shower Enclosure

Glass window/ door

Projection screen

Hotel/office/shop windowss

House insulations

Hospital/library/theater glass windows

Principle:

Advantages:

Privacy Protection and Room Partition:
The most function is privacy protection . Transforms from opaque barrier to a clear state.
Allows Architects and Contractors to provide creative design concepts on demand.

Rear Projection Screen:
Great solution for a rear-projection screen with high contrast.

Explosion- proof:
No distraction of shutters blinds or drapes.

Heat Insulation:
The smart film and EVA film can block sun solar energy, 99%UV, 98% IR rays.
Protecting your interiors fading and yellowing.
And meanwhile, can protect people from disease caused by direct sunlight.

Sound Insulation:
Can block noise by 20% more than normal glass.

Multiple Control:
Different style controls like remote control, wall switch, light sensor, voice control, APP etc.

Functions:

Products Selection:

FAQ:

1).Question: Does your company provide installation services overseas?
Answer : Yes, we can offer the installation in your side, but, the cost of round trip ticket,

accommodation and 150USD/day for workers shall be at buyer's charge.

We also can help customers to instal themsleves.

2).Question: Does this need to be installed by an electrician?
Answer: NO, We can provide you a complete closed system that is ready to install with a plug,

it can be DIY by yourself. If you would like to hire an electrician to achieve your goal that is

your own decision.

3).Question: Can you cut the film on site....or do you need an absolute measurement from us

before the panels are custom made?
Answer: The material is custom manufactured with special laser equipment to ensure straight

cuts however you can cut the material if needed to add a logo, trim etc.

4).Question: Can we install this film on the top half of the glass only? We were thinking we wanted

to keep the existing decals in place and install film from the decal up to the top of the panel.
Answer:Yes - You can install on top half or bottom half only, just be careful for the wiring.

5).Question: Is the PDLC smart film energy saving?
Answer:- Yes, It is considered a green product that consumes around 5 watts per sqm.

6).Question: Does it block the UV harmful rays?
Answer :Yes. It blocks over 98% of the harmful UV rays in both its energized and non-energized state.

7).Question:Can we install this product ourselves?
Answer:Yes, we offer complete do it your self kits with practice pieces.

8).Question:How long will it take for production and delivery..
Answer: This depends on Material size, total qty order and geographic delivery place.For expedited

sample orders, we can ship as fast as 5 - 8working days from payment confirmation.

If for mass production, it will only last for 10-15 working days approximately.

9).Question:What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.

10).Question:Is there a MOQ (Minimum of Quantity)?
10 square meter

11).Question:What is the expected life of your products?
Life expectancy is approximately 8-10 years or switch >2000000times.

About Upass:

Upass, founded in 2008, now as a governing unit of China Building Waterproof Association,

a vice chairman unit of Professional Committee of China Modified Plastic Association,

an enterprise with Triple A credibility in China Plastic Association, not only assists the

development of the relevant industries, but also upholds the conception of sustainable

development by successive technological innovation. Upass so far has acquired over

100 of intellectual property rights.
