Name: Single Silicon Coated 035mm 350 Micron Metalized PET Film
Brand: UPASS
Price: 1 USD

Add to Cart

Single Silicon Coated Modified PET Film

Description:

It is modified polyester, we called as Modified PET release film, possesses high elongation

at break, largely ameliorates the problem of causing big and deep wrinkles at the

transverse direction while downstream production by using

BOPET(Biaxially oriented PET) release film.

Advantages:

► High temperature resistance, up to 160℃

► High subsequent adhesion rate, up to 90%, less silicon tranfer

► It is soft than PET film, tear resistance, high strength

► More thinner, can be do at 20 micron

► No color change, easy to peel off when use

► Make the products' surface more flat

► High elongation, more than 150%

Application:

1. For Self-adhesive waterproof membranes
2. For die-cut application
3. For Self-adhesive tapes

Parameter:

Products Name		PET release film		Spec.	0.05mm*1000mm
Detection Methed		Q/TPXP 1-2013		Date	2020.12.26
NO.	Item	Factory Requirement		Detection Value	Individual Determination
1	Appearance	No bubbles, no stains, no damage, no impurities		Qualified	Qualified
2	Spec.	Width	1000±5mm	1001	Qualified
		Thickness	0.05±0.005mm	0.04935	Qualified
3	Elongation (%)	TD (CD)	≥40	130.5	Qualified
		MD	≥40	159.28	Qualified
4	Tensile Strength(Mpa)	TD (CD)	≥150	226	Qualified
		MD	≥150	195	Qualified
5	Heat Shrinkage	TD (CD)	%	-0.1	Qualified
		MD		2.33	Qualified
6	Friction Coefficient	uS		0.384	Qualified
		uK		0.421	Qualified
7	Haze		%	3.1	Qualified
8	Wetting Tension	mN/m		58	Qualified
Detection		Qualified

FAQ:

Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

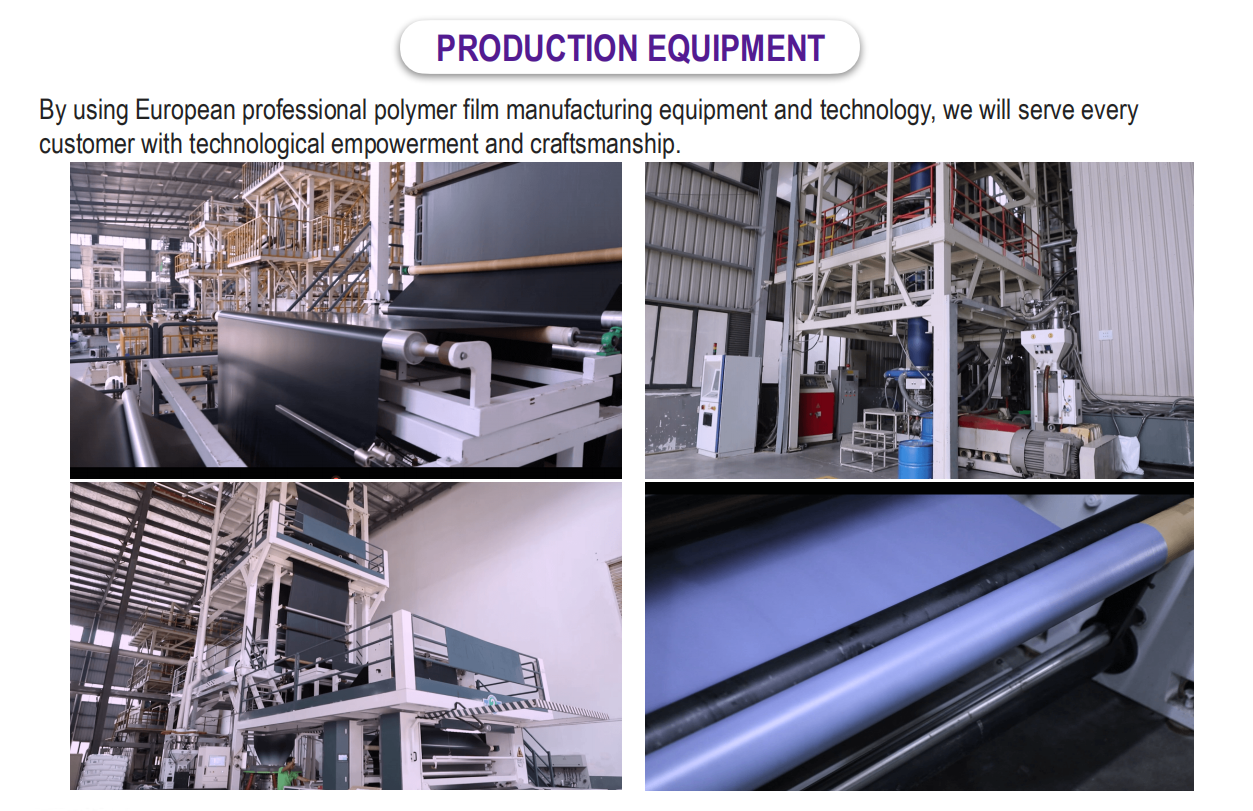

Equipment:
