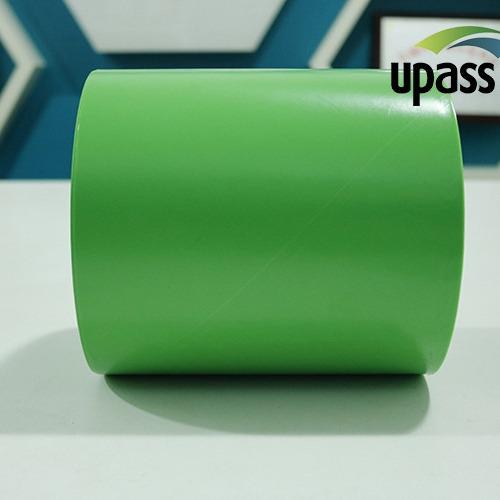

Puncture Resistance High Strength Laminated Packaging Film
Description:
It is a high-strength multi-layer composite film,It is made of HDPE
as the base material,
adding plasticizer, plasticizer, stabilizer, antioxidant, UV
absorber, toughener and other
additives through multi-layer co-extrusion blow molding into
embryos, and then by multiple
pull Stretching, then rotary cutting into a film substrate with a
horizontal and vertical
distribution of 45 °, and finally through cross-compositing. Due to
its cross-stacking structure
is different from ordinary single-layer or multi-layer film, it has
the thermal stability,
dimensional stability, two-way tear resistance, two-way uniform
tension and high elongation
which are not available in traditional films.
| It is a high-strength multi-layer composite film,It is made of HDPE
as the base material, adding plasticizer, plasticizer, stabilizer,
antioxidant, UV absorber, toughener and other additives through
multi-layer co-extrusion blow molding into embryos, and then by
multiple pull Stretching, then rotary cutting into a film substrate
with a horizontal and vertical distribution of 45 °, and finally
through cross-compositing. Due to its cross-stacking structure is
different from ordinary single-layer or multi-layer film, it has
the thermal stability, dimensional stability, two-way tear
resistance, two-way uniform tension and high elongation which are
not available in traditional films. |
| Laminated film is an extremely versatile, high-performance product
line that resists tearing, puncturing, and weathering. Our
proprietary, cross-lamination manufacturing process provides
considerably tighter gauge control than competitive spun bonded,
smoother printing surfaces, and ease in converting. It is so strong
that it will not tear, even when nicked, and withstands cold
temperature. UV stabilized, the grades hold up well during outdoor
exposure and provides superior moisture and chemical resistance
making it ideal for engine tags as well as cruise and freight tags. |
Phameter:
| NO. | Item | Performance |
| | SDM-30 | SDM-60 |
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| | MaxF/(N/50mm) ≥ | 200 | 300 |
| | Elongation as MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 250 |
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 |
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 |
| 4 | Angle Tear Strength/N ≥ | 25 |
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation |
| 6 | Cryogenic Flexibility ℃ | -35℃, No fissure, No delamination |
| 7 | Thermal Ageing | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 80 |
| | Elongation at MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 200 |
| 8 | Artificial Weathering | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 70 |
| | Elongation at MaxF/% ≥ | 180 |
| | Elongation at break/% ≥ | 180
|
Advantages:
► Corona treated for optimal results when flexo, offset, or screen
printed, can also be
thermal transfer printed (ANSI A Scans)
► Outdoor Durability: UV stabilized for improved weather resistance
and performance in
harsh environments
► Performance in temperatures from -35°C-75°C
► Good ink adhesion: non-smearing
► Chemical and Oil Resistance
► Pre-printed or print-on-demand
► Excellent Staple Pullout Resistance
Application:
It is special design for packing materials, such as chemical
packaging, cotton packaging and emulsion explosives and so on. |
