Anti Aging PET Laminated Film 608 Packaging Film

Ask Lasest Price
Brand Name :	UF
Model Number :	608
Payment Terms :	L/C, T/T
Supply Ability :	20 Tons/Month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

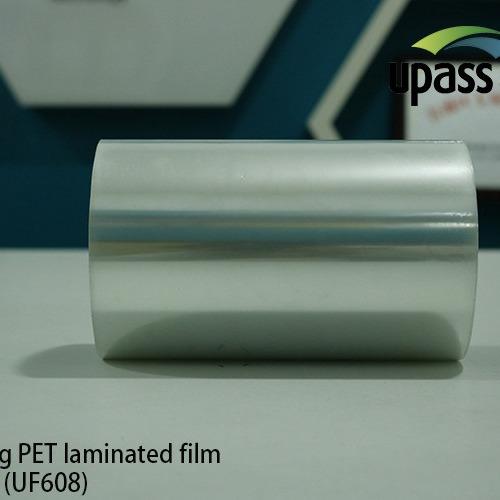

Anti Aging PET Laminated Film 608 Packaging Film

Anti-aging PET laminated film 608 Packaging film

Description:

It is a composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing membrane, without efflorescence and layering defect, has good anti-aging, UV resistance and weather resistance as well. It prevents the asphalt from sun exposure due to reflectivity of over 90%.

Application:

It is used for the market of waterproofing, adhesive tapes,etc.

Main feature: Anti-aging

Color: Silver

Performance index:

Test item		Test method	Value	Remark
Thickness	0.045	GB/T6672-2001	0.046
Thickness	0.07	GB/T6672-2001	0.072
Width		GB/T6673-2001	1000	as per the requirement
Sleeve I.D.			350	as per the requirement
Period of anti-aging	0.045	/	/	5~10 years
Period of anti-aging	0.07	/	/	over 20years
Max.Tensile strength	0.045	GB/T 328.9-2007	MD:388N TD:354N	Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm
Max.Tensile strength	0.07		MD:456N TD:428N
Elongation @ Max. tension	0.045		MD:85% TD:78%
Elongation @ Max. tension	0.07		MD:102% TD:93%
Peeling force	0.045	GB/T 529-2008	MD:20.4N TD:18.6N	Stretching speed: 250mm/min
Peeling force	0.07	GB/T 529-2008	MD:23.9N TD:21.5N	Stretching speed: 250mm/min
Dimensional stability	0.045/0.07	GB/T 35467-2017	MD:0% TD:0%	90℃&24h
Aging test	PCT96	/	Yellowing index △b≤2.0,	Temperature:121℃, Humidity: 100％, Atmosphere pressure: 2atm,Time: 48h
Aging test	UV300KWh	IEC61215	Yellowing index △b≤2.0,	Temperature on the sample: 60±5℃, Total exposure dose: 120KWh•m2,UVB factor: 3%-10%.

About Upass:

Upass was founded in 2008, headquartered in the cluster of New Material Industrial Park, Qingpu District, Shanghai. Upass industry is affiliated to the field of new innovative material among top10 Made in China 2025. Upass production bases are respectively located in Taicang, Jiangsu Province ( the 1^st stage of project was in to production in Jun.2014, covering over 36,600 Sqm., which was one of the major municipal investment programs in Taicang city in 2012.The 2^nd stage of project will be in to production within 2020), and Chenzhou city, Hunan province.

Upass was introduced integrated hi-tech manufacturing equipment from European countries. As an environment oriented company, Upass particularly focuses on technological innovation, and spares no efforts in continuously strengthening the abilities in R&D. Upass self-established national standard laboratory. Through the cooperation with Sinopec Group and excellent national universities, Upass has jointly developed SDM strong cross film, PE release film with multi-characters (of wrinkle, hydrophilic, non-slippy, tear line, anti-aging, etc.), PET release film (various peeling forces), SBS super soluble film, the new national standardized laminated film,etc. The series of products especially have been acknowledged by top ten companies in the relevant downstream industries in China. Upass has so far acquired more than 100 patents of intellectual properties.
