UF508 White Surface Material Anti Corrosion Film

Ask Lasest Price
Brand Name :	Upass
Model Number :	Laminated Film
Certification :	CE, ROHS
Price :	Negotiable
Payment Terms :	T/T,L/C
Supply Ability :	200,000㎡~300,000㎡
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

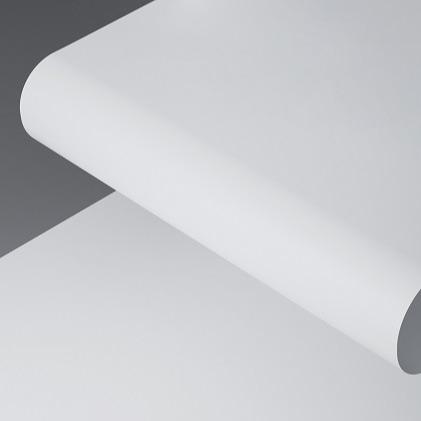

UF508 White Surface Material Anti Corrosion Film

UF508 White Surface Material Anti Corrosion Film

Description:

What's Anti Corrosion Film?

It is a surface material, use PET film laminated with fluorine film, make the film high strength and aging resistance(More than 25 years). Make it it an ideal material for surface material of waterproofing membranes, butyl tapes, underlayment and so on.

Structure:

Inner side, it is PET film (Thickness: 0.05mm or 0.1mm, High Strength, Tear Resistance);

Outer side is white fluorine film (Thickness:0.025mm, Aging or Weather resistance, up to 25 years).

UF508 White Surface Material Anti Corrosion Film

Advantages:

1. Excellent properties of anti-aging, more than 25 years

2. UV resistance

3. Reflectivity of over 80%-85% sunlight

4. Chemical corrosion resistance

5. High strength, tear resistance

Parameter:

Detection Item		Detection Method	Detection Value	Remark
Thickness	UF508	GB/T6672-2001	0.075mm/0.125mm	/
Width		GB/T6673-2001	/	According to customer needs
Max force	UF508	GB/T 328.9-2007	MD:770N	Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
			TD:762N
Elongation at Break	UF508		MD:79%
			TD:99%
Tensile Strength	UF508	GB/T 529-2008	MD:23N	Stretching speed:250mm/min
			TD:21N
Surface Tension		GB/T14216	≧42dyn/cm	Dyne Pen Test
Dimensional change rate	UF508	GB/T 35467-2017	MD:0%	90℃&24h
			TD:0%
Water vapor transmission rate		GB/T 21529	≦70 g/m2.24h (20um)	38℃+100%RH
				Electrolytic sensor method
Flammability grade		UL94	VTM-0	White weathering film
Aging test	PCT96	/	Yellowing index △b≤2.0,	Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
	UV300KWh	IEC61215		The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
	DH2000h	IEC61215		Temperature 85 ℃, humidity 85% R.H., 2000h
	TC400	IEC61215		Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle
