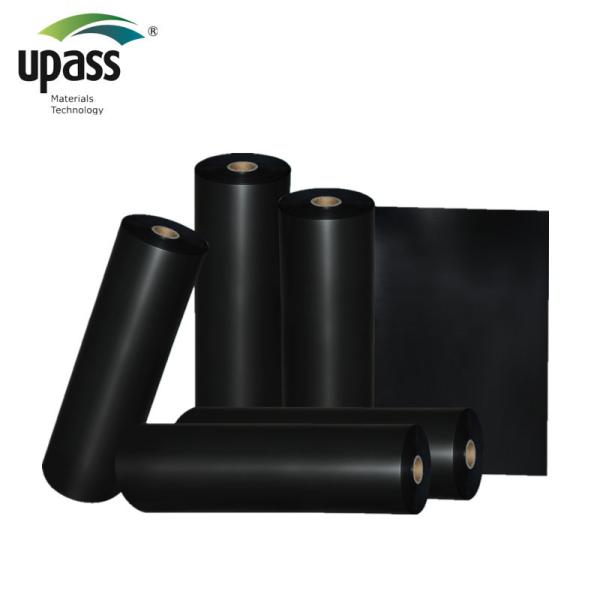

Name: High Temperature Resistance HBF Silicone Coated Release Liner
Brand: UPASS
Price: 1 USD

Add to Cart

It is PP plastic film as carrier, silicon coated on one side or both side by UV or Thermal

curing type depends on the applications.

High Temperature Resistance, can do 150-180℃.

According to different application , the release force is different, the viscidity of release

product glue is different , to adjust the release force, to make it have the light and stable

release force during peeling. Therefore we have thermal curing and UV curing for silicone

coating due to different release force requirements.

Parameter:

Products Name		High Temperature Resistance HBF Silicone Coated Release Liner		Spec.	0.04mm*1040
Detection Methed		Q/TPXP 1-2013		Date	2021.11.13
NO.	Item	Factory Requirement		Detection Value	Individual Determination
1	Appearance	No bubbles, no stains, no damage, no impurities		Qualified	Qualified
2	Spec.	Width	1040±10mm	1041	Qualified
		Thickness	0.04±0.005mm	0.041	Qualified
3	Max.F (N/50mm)	TD (CD)	≥30	68	Qualified
		MD	≥30	72	Qualified
4	Elongation (%)	TD (CD)	≥150	532	Qualified
		MD	≥200	358	Qualified
5	Tensile Strength	TD (CD)	≥16	23	Qualified
		MD	≥18	36	Qualified
6	Release Force (N/25mm)	3-5g, 5-10g		8.1	Qualified
7	Subsequent Adhesion (%)	≥90		93	Qualified

♦ Used for self-adhesive waterproof membranes and other self-adhesive products

♦ Used for hot-melt glue tapes/products

♦ Used for butyl adhesive tapes/products
