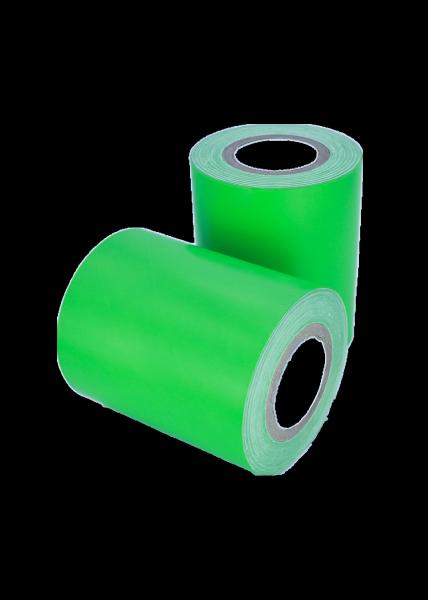

Name: Weather Resistance Anti Corrosion Film For Butyl Tapes
Brand: UPASS
Price: 1 USD

Add to Cart

It is composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing

membrane. It is resistant to UV and weather, without efflorescence and layering-defects, prevents the asphalt

from sun-exposure due to reflectivity of over 90%.

It is specially designed for waterproofing industry, which shall substitute conventional exposed waterproofing

material including the film for waterproofing membrane. It also has cost effectiveness, and lasts over 25years

of weather resistance.

Test item		Test method	Value	Remark
Thickness	0.045	GB/T6672-2001	0.046
Thickness	0.07	GB/T6672-2001	0.072
Width		GB/T6673-2001	1000	As per the requirement
Coil I.D			350	As per the requirement
Period of anti-aging	0.045	/	/	5~10 years
Period of anti-aging	0.07	/	/	Over 20years
Max.Tensile strength	0.045	GB/T 328.9-2007	MD:388N TD:354N	Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm
Max.Tensile strength	0.07		MD:456N TD:428N
Elongation @ Max. tension	0.045		MD:85% TD:78%
Elongation @ Max. tension	0.07		MD:102% TD:93%
Peeling-force	0.045	GB/T 529-2008	MD:20.4N TD:18.6N	Stretching speed:250mm/min
Peeling-force	0.07	GB/T 529-2008	MD:23.9N TD:21.5N	Stretching speed:250mm/min
Dimensional stability	0.045/0.07	GB/T 35467-2017	MD:0% TD:0%	90℃ & 24h
Aging test	PCT96	/	Yellowing index △b≤2.0,	Temperature:121℃, Humidity: 100％, Atmosphere pressure: 2atm, Time: 48h
Aging test	UV300KWh	IEC61215	Yellowing index △b≤2.0,	Temperature: 60±5℃, Total exposure dose: 120KWh•m², UVB factor: 3%-10%.

1. High Strength;

2. Weather Resistance, can up to 25 Years;

3. UV Resistance;

4. High Sunshine Reflection, over 90%.

Application:

1. Weather Resistance Tape Application:

2. Aging Resistance Waterproof Membrane Application:

Product Tags:

Butyl Tapes Anti Corrosion Film
